System NTSC, PAL, SECAM, PAL-M, PAL-N Recommended Projection Size From 40" up to 300" diagonal Lens 37.7-48.8mm f/1.7-2.3 Native Resolution XGA 1024 x 768 Resolution Focus/Zoom Adjusting Yes - 1.3 Zoom Lens and 4x Zoom with Remote Brightness 3500 ANSI Lumens Lamp (Bulb) 265 W UHP Lamp
Lamp Life 3000 hour Projector Display System Sony LCD Panel, 0.99" x3 TFT (Thin Film Transistor)
with Micro Lens Array Projection Tilt Option Yes Number of Pixels 786,432 x3= 2,359,296 Pixels
APA (Auto Pixel Alignment) Aspect Ratio 16:9 Wide Mode

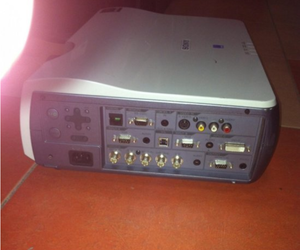

4:3 Full Screen Rear Screen Projection Yes Ceiling Mountable Yes Inputs HD-15-pin x2
5 BNC for RGBHV or RGB x5
DVI-D x1
Mini Audio x2
S-Video x1
Composite A/V - RCA x1 Output Computer Monitor x1
Mini Audio x1 Control Protocol RS-232C
Ethernet Port: RJ-45 10 Base-T/100 Base-TX
USB Port
Control-S Built-in Speaker Stereo Speakers System, 2w x2 Keystone Correction Yes, +/- 20 degrees Remote Control Yes Power Requirements 365w, 6w Standby, 100-240v, 50/60Hz Dimensions (WxHxD) 16-5/8 x 4-5/8 x 12-1/2"
420 x 125 x 316mm Weight 17.2 lb
7.8 kg Specialties
On-screen display menu is available in nine languages
Cabinet Color White Optional Accessories Replacement Lamp LMP-P260 265w UHP Lamp Suspension Support PSS-610 Ceiling Mount Signal Cables SMF-400 ((HD D-sub 15-pin to 5 BNC, for RGB signal)
SMF-410 (HD D-sub 15-pin to HD D-sub 15-pin, for RGB signal) Optional Lenses VPLL-FM22 Fixed short focus lens, throw ratio: 0.9:1
VPLL-ZM102 1.5 times zoom long focus lens, throw ratio: 3.35-4.9:1 Packaging Info Package Weight 25.9 lb
